OM3 50/125 Duplex Fibre Optic Patch Cords

OM3 50/125 Duplex Fibre Optic Patch Cords

Manufactured using 50µm multimode fibre optimised for the use with 850nm VCSELS (vertical cavity surface emitting lasers), OM3 multimode  patch cords are used particularly in 1Gb/s10Gb/s and higher bandwidth applications over shorter distances. Compatible with higher performance OM4 systems, OM3 provides additional insertion loss margins while remaining cost effective for less-demanding applications. All assemblies are fully tested prior to delivery and supplied with test results. Most common connector types, configurations and lengths are available from stock, using 3mm (for additional ruggedising) or 2mm diameter cable on request. OM3 multimode patch cords are supplied with an aqua LSZH cable jacket as standard. Non-stocked configurations (length, colour, connectors and cable type) can be manufactured to meet specific requirements

Product Details

  • Data centres
  • Storage area networks
  • LAN/Enterprise
  • High performance computing centre
  • Central offices
  • For use in 40 - 100 Gb/s networks <100m indicative link length at 850nm (SR) wavelength
  • For use in 10 Gb/s  networks <300m in indicative link length at 850nm (SR) wavelength
  • For use in 1 Gb/s networks <750m indicative link length at 850nm (SX) wavelength
  • 850nm laser optimised
  • SC, LC and ST connectors as standard, other connectors available
  • LSZH - Low smoke zero halogen, aqua jacket
  • 900µm tight buffer, 3mm simplex and duplex cable (2mm cable on request)
  • Available in other colours
  • Armoured, round duplex and flat twin patch cords also available
  • OM3 fibre conforms to or exceeds all relevant ISO/IEC, TIA/EIA and ITU standards
  • All patch cords come with a UPC polished connector end face as standard

Fibre Specification

Attenuation (db/km)

≤ 2.4 @ 850nm / ≤ 0.6 @ 1300nm

Overfilled Modal

Bandwidth (MHz x km)

≥ 1500 @ 850nm / ≥ 500 @ 1300nm

Effective Modal Bandwidth

(MHz x km)

≥ 2000 @ 850nm

Application Support Distance on:

40 and 100 Gigabit Ethernet -SR (m)

100 @ 850nm

10 GBase - SR (m)

300 @ 850nm

1000 Base - SX (m)

1000 @ 850nm

Cable Specification

Simplex

Duplex

Cable Material

LSZH

LSZH

Strength Member

Aramid

Aramid

Crush (N/100mm)

1000

1000

Tensile (N)

120

120

Operating Temperture (ºC)

-20 to 60

-20 to 60

Connector Specification

IL Max/Master (db)

(Acceptance)

≤ 0.25

Av./Random (db)

≤ 0.20



Ordering Info

LC - LC Multimode 50/125 OM3 Duplex

Part Number

Description

LCLC3D0010

Patch Cord LC - LC 50/125 Duplex 1M

LCLC3D0020

Patch Cord LC - LC 50/125 Duplex 2M

LCLC3D0030

Patch Cord LC - LC 50/125 Duplex 3M

LCLC3D0050

Patch Cord LC - LC 50/125 Duplex 5M

LCLC3D0100

Patch Cord LC - LC 50/125 Duplex 10M

LCLC3D0120

Patch Cord LC - LC 50/125 Duplex 12M

LCLC3D0150

Patch Cord LC - LC 50/125 Duplex 15M

LCLC3D0200

Patch Cord LC - LC 50/125 Duplex 20M

LCLC3D0250

Patch Cord LC - LC 50/125 Duplex 25M

LCLC3D0300

Patch Cord LC - LC 50/125 Duplex 30M

LCLC3D0400

Patch Cord LC - LC 50/125 Duplex 40M

LCLC3D0500

Patch Cord LC - LC 50/125 Duplex 50M

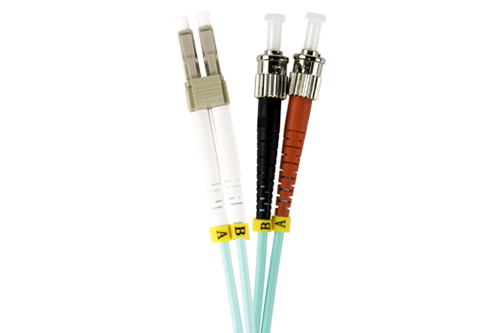

LC - LT Multimode 50/125 OM3 Duplex

Part Number

Description

LCST3D0010

Patch Cord LC - ST 50/125 Duplex 1M

LCST3D0020

Patch Cord LC - ST 50/125 Duplex 2M

LCST3D0030

Patch Cord LC - ST 50/125 Duplex 3M

LCST3D0050

Patch Cord LC - ST 50/125 Duplex 5M

LCST3D0100

Patch Cord LC - ST 50/125 Duplex 10M

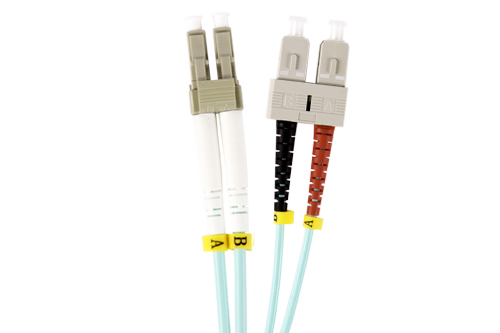

LC - SC Multimode50/125 OM3 Duplex

Part Number

Description

LCSC3D0010

Patch Cord LC - SC 50/125 Duplex 1M

LCSC3D0020

Patch Cord LC - SC 50/125 Duplex 2M

LCSC3D0030

Patch Cord LC - SC 50/125 Duplex 3M

LCSC3D0050

Patch Cord LC - SC 50/125 Duplex 5M

LCSC3D0100

Patch Cord LC - SC 50/125 Duplex 10M

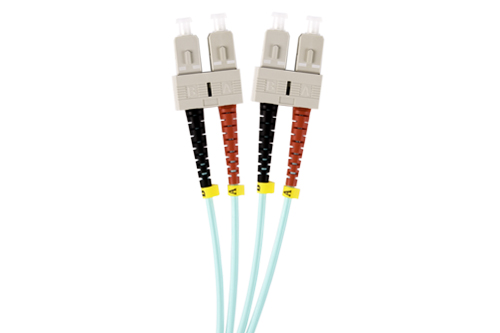

SC - SC Multimode50/125 OM3 Duplex

Part Number

Description

SCSC3DX010

Patch Cord SC - SC 50/125 Duplex 1M

SCSC3DX020

Patch Cord SC - SC 50/125 Duplex 2M

SCSC3DX030

Patch Cord SC - SC 50/125 Duplex 3M

SCSC3DX050

Patch Cord SC - SC 50/125 Duplex 5M

SCSC3DX100

Patch Cord SC - SC 50/125 Duplex 10M

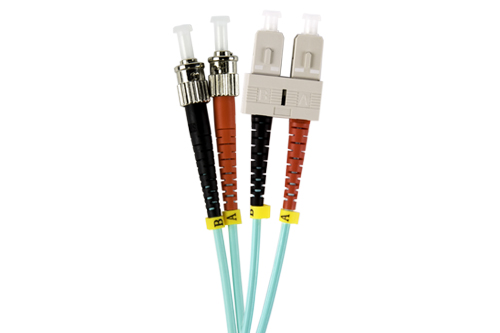

ST - SC Multimode 50/125 OM3 Duplex

Part Number

Description

STSC3D0010

Patch Cord ST - SC 50/125 Duplex 1M

STSC3D0020

Patch Cord ST - SC 50/125 Duplex 2M

STSC3D0030

Patch Cord ST - SC 50/125 Duplex 3M

STSC3D0050

Patch Cord ST - SC 50/125 Duplex 5M

STSC3D0100

Patch Cord ST - SC 50/125 Duplex 10M

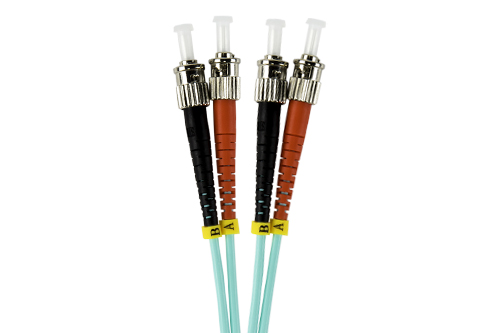

ST - ST Multimode 50/125 OM3 Duplex

Part Number

Description

STST3D0010

Patch Cord ST - ST 50/125 Duplex 1M

STST3D0020

Patch Cord ST - ST 50/125 Duplex 2M

STST3D0030

Patch Cord ST - ST 50/125 Duplex 3M

STST3D0050

Patch Cord ST - ST 50/125 Duplex 5M

STST3D0100

Patch Cord ST - ST 50/125 Duplex 10M
