OS2 9/125 Duplex Fibre Patch Cords

OS2 9/125 Duplex Fibre Optic Patch Cords

OS2 singlemode fibre optic patch cords are used to connect longer distance networks, between buildings and campuses and in long-distance metropolitan and access telecoms and CATV networks. All assemblies are fully tested prior to delivery and supplied with test results. Most common connector types, configurations and lengths are available from stock, using 3mm (for additional ruggedising) or 2mm diameter cable on request. OS2 singlemode patch cords are supplied with a yellow LSZH cable jacket as standard. Non-stocked configurations (length, colour, connectors and cable type) can be manufactured to meet specific requirements.

Product Details

  • Data centres
  • LAN/Enterprise
  • Metropolitan and access networks
  • FTTH
  • CATV
  • Transmission, switch and test equipment
  • SC, LC, ST, FC, MU and E2000 as standard. Other connectors available
  •  LSZH - Low smoke zero halogen, yellow jacket
  • Simple and duplex assemblies
  • 900µm tight buffer, 3mm simplex and duplex cable (2mm cable on request)
  • Available in other colours
  • Armoured, round duplex and flat twin patch cords also available
  • Uniboot and short boot patch cords also available
  • All patch cords come with UPC and APC polished connector end face as standard
  • OS2 fibre conforms to or exceeds all relevant ISO/IEC, TIA/EIA and ITU standards

Fibre Specification

Attenuation (db / km)

≤ 0.32 @ 1310nm /≤ 0.18 @ 1550m

Chromatic Dispersion (ps/nm-km)

1285 - 1340 ≥ -3.4 ≤ 3.4

1550nm ≤ 18

1625nm ≤ 22

Zero Dispersion Wavelength (nm)

1312 ± 22

Cable Specification

Simplex

Duplex

Cable Material

LSZH

LSZH

Strength Member

Aramid

Aramid

Crush (N/100mm)

1000

1000

Tensile (N)

120

120

Operating Temperture (ºC)

-20 to 60

-20 to 60

Connector Specification

UPC

APC

IL Max/Master (db)

(Acceptance)

≤ 0.25

≤ 0.25

Av./Random (db)

≤ 0.20

≤ 0.20

Return Loss (db)

≥ 55

≥ 65



Ordering Info

LC - LC Singlemode 9/125 OS2 Duplex

Part Number

Description

LCLC9D0010

Patch Cord LC - LC 9/125 Duplex 1M

LCLC9D0020

Patch Cord LC - LC 9/125 Duplex 2M

LCLC9D0030

Patch Cord LC - LC 9/125 Duplex 3M

LCLC9D0050

Patch Cord LC - LC 9/125 Duplex 5M

LCLC9D0100

Patch Cord LC - LC 9/125 Duplex 10M

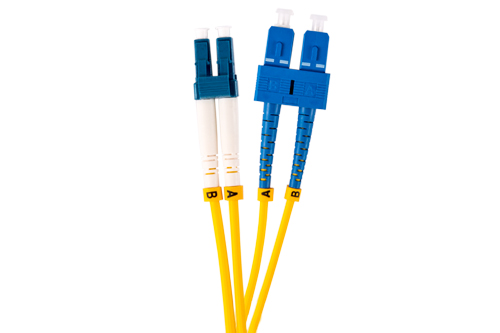

LC - SC Singlemode 9/125 OS2 Duplex

Part Number

Description

LCSC9D0010

Patch Cord LC - SC 9/125 Duplex 1M

LCSC9D0020

Patch Cord LC - SC 9/125 Duplex 2M

LCSC9D0030

Patch Cord LC - SC 9/125 Duplex 3M

LCSC9D0050

Patch Cord LC - SC 9/125 Duplex 5M

LCSC9D0100

Patch Cord LC - SC 9/125 Duplex 10M

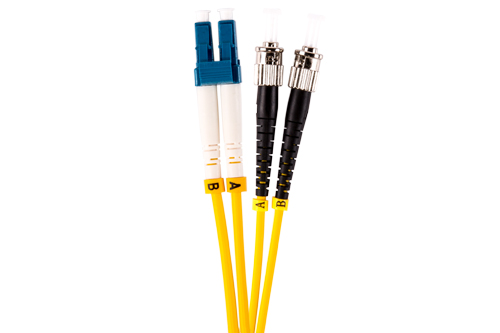

LC - ST Singlemode 9/125 OS2 Duplex

Part Number

Description

LCST9D0010

Patch Cord LC - ST 9/125 Duplex 1M

LCST9D0020

Patch Cord LC - ST 9/125 Duplex 2M

LCST9D0030

Patch Cord LC - ST 9/125 Duplex 3M

LCST9D0050

Patch Cord LC - ST 9/125 Duplex 5M

LCST9D0100

Patch Cord LC - ST 9/125 Duplex 10M

SC – SC Singlemode 9/125 OS2 Duplex

Part Number

Description

SCSC9D0010

Patch Cord SC - SC 9/125 Duplex 1M

SCSC9D0020

Patch Cord SC - SC 9/125 Duplex 2M

SCSC9D0030

Patch Cord SC - SC 9/125 Duplex 3M

SCSC9D0050

Patch Cord SC - SC 9/125 Duplex 5M

SCSC9D0100

Patch Cord SC - SC 9/125 Duplex 10M

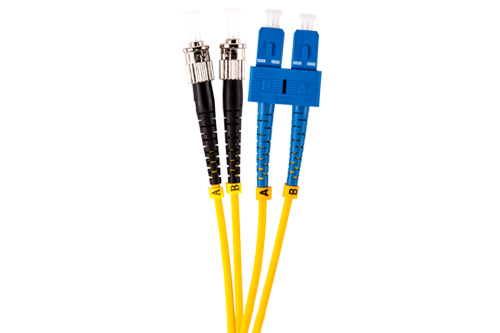

SC - ST Singlemode 9/125 OS2 Duplex

Part Number

Description

SCST9D0010

Patch Cord SC - ST 9/125 Duplex 1M

SCST9D0020

Patch Cord SC - ST 9/125 Duplex 2M

SCST9D0030

Patch Cord SC - ST 9/125 Duplex 3M

SCST9D0050

Patch Cord SC - ST 9/125 Duplex 5M

SCST9D0100

Patch Cord SC - ST 9/125 Duplex 10M

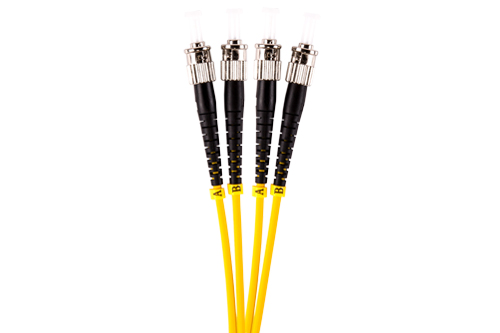

ST - ST Singlemode 9/125 OS2 Duplex

Part Number

Description

STST9D0010

Patch Cord ST - ST 9/125 Duplex 1M

STST9D0020

Patch Cord ST - ST 9/125 Duplex 2M

STST9D0030

Patch Cord ST - ST 9/125 Duplex 3M

STST9D0050

Patch Cord ST - ST 9/125 Duplex 5M

STST9D0100

Patch Cord ST - ST 9/125 Duplex 10M

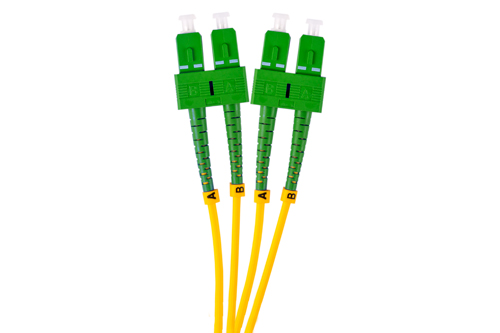

SC/APC - SC/APC Singlemode 9/125 OS2 Duplex

Part Number

Description

SCASCA9D0010

Patch Cord SCA - SCA 9/125 Duplex 1M

SCASCA9D0020

Patch Cord SCA - SCA 9/125 Duplex 2M

SCASCA9D0030

Patch Cord SCA - SCA 9/125 Duplex 3M

SCASCA9D0050

Patch Cord SCA - SCA 9/125 Duplex 5M

SCASCA9D0100

Patch Cord SCA - SCA 9/125 Duplex 10M

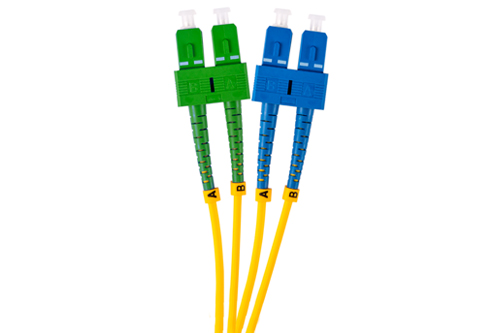

SC/APC SC Singlemode 9/125 OS2

Part Number

Description

SCALC9D0010

Patch Cord SCA - LC 9/125 Duplex 1M

SCALC9D0020

Patch Cord SCA - LC 9/125 Duplex 2M

SCALC9D0030

Patch Cord SCA - LC 9/125 Duplex 3M

SCALC9D0050

Patch Cord SCA - LC 9/125 Duplex 5M

SCALC9D0100

Patch Cord SCA - LC 9/125 Duplex 10M
